Car Audio Crossover Settings: Start Here

Car audio crossover settings are one of the easiest places to improve a system without buying another component. They decide which part of the system handles bass, vocals and detail. Get that handoff close, and the music tends to sound cleaner at normal volume. Get it wrong, and a system can feel boomy, thin, harsh or strained even when every piece of equipment is working.

There is no magic number that fits every vehicle. The speaker size, factory locations, amplifier power, subwoofer enclosure and the cabin itself all change the result. Still, a few sensible starting points make the first adjustment far less confusing. This guide explains what each control does, where to begin, and how to listen your way toward a balanced setup.

If you are building a system from scratch, use this alongside our guide on how to upgrade car audio without wasting money. That broader plan helps make sure the receiver, speakers, bass and installation all have a clear job.

1. Start with the job each speaker should do

A crossover is simply a traffic director for sound. It limits the range of frequencies sent to a speaker so that speaker can focus on the work it does best. The common controls are high-pass, low-pass and, on some equipment, band-pass filters.

A high-pass filter sends the higher frequencies onward while reducing deep bass. It is commonly used on door speakers and smaller coaxial speakers. That does not mean those speakers stop making all bass. It means they are not asked to reproduce the very lowest notes that are more demanding and often better handled by a subwoofer.

A low-pass filter does the reverse. It lets the low frequencies reach the subwoofer while reducing vocals and higher instruments. When the settings are close, the transition should feel invisible. You should hear music as one system, not a set of separate boxes in different parts of the vehicle.

2. Use 80 Hz as a practical first setting

For a typical system with front door speakers and a subwoofer, 80 Hz is a useful starting point for both the front-speaker high-pass filter and the subwoofer low-pass filter. It is common because it asks the subwoofer to cover the deeper bass while leaving the front speakers room to handle vocals, guitars, percussion and the detail that gives music its shape.

Start there only after setting the receiver tone controls flat or close to flat. Turn off bass boost and loudness modes while you dial in the crossover. Those features can hide whether the handoff itself is working, then make the system harder to correct later. Use a familiar song with a clean bass line and clear vocals, not just the one track that has the biggest low end.

The setting may need to move. Smaller door speakers, shallow factory locations or speakers that sound stressed may benefit from a slightly higher high-pass point. Larger well-powered front speakers may blend well at a lower point. The right choice is the one that keeps the front speakers clean while making the subwoofer feel like part of the music rather than a separate rumble behind you.

Use a short list of songs rather than chasing a different setting for every genre. Pick one track with a steady kick drum, one with an acoustic bass or bass guitar, and one with a vocal you know well. At a good crossover point, the kick should have impact without a hollow gap, bass notes should have weight without swelling, and vocals should stay anchored ahead of the listener. Those three checks tell you more than turning the system up for a few seconds.

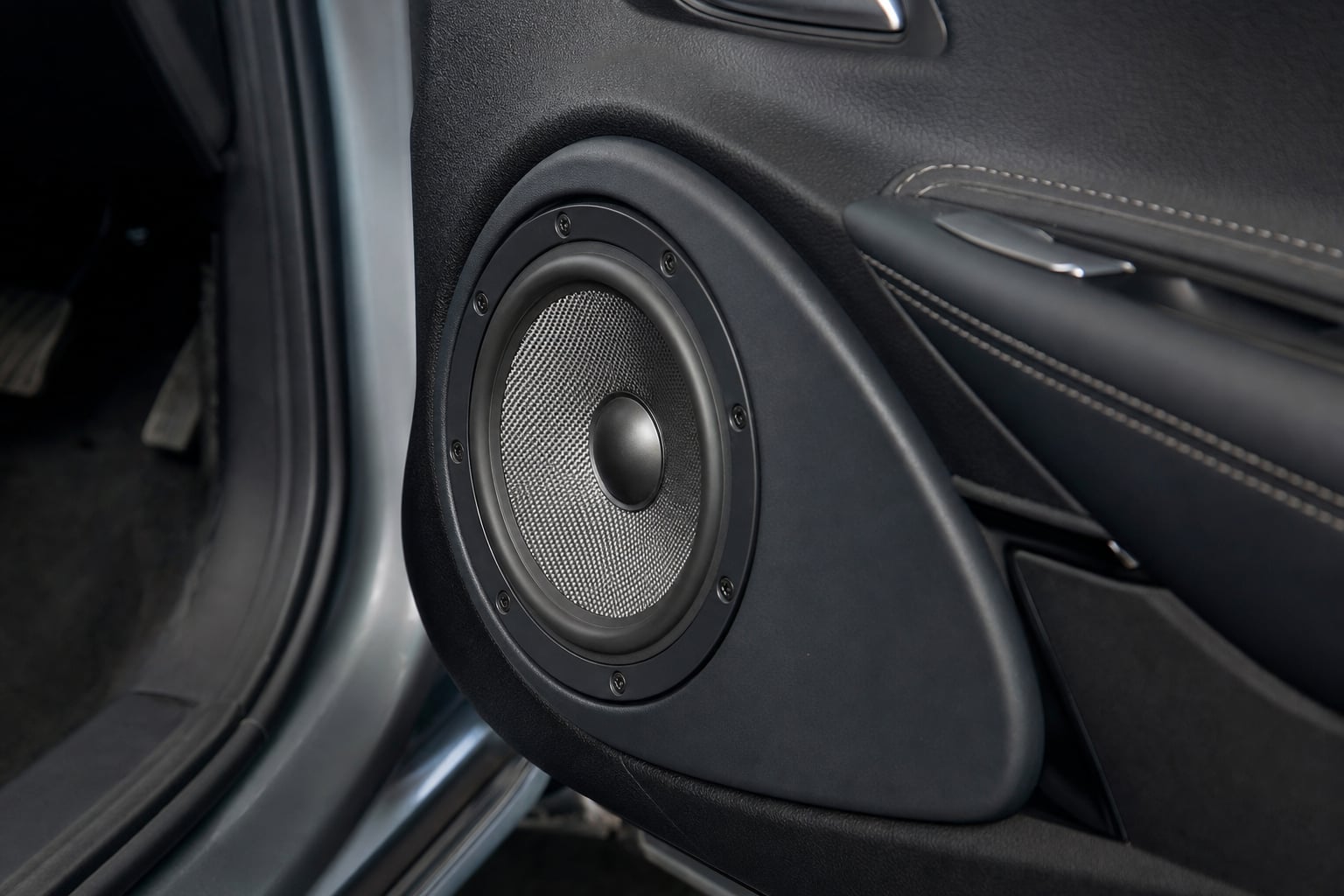

3. Set the high-pass filter for the front speakers

The front speakers carry much of the sound you notice first, especially voices and instruments. If they are forced to work too hard on deep bass, they can run out of travel, sound congested or begin to distort as volume rises. A high-pass filter protects their useful range and gives the system more headroom.

Begin around 80 Hz for a system with a dedicated subwoofer. If the door speakers sound strained on bass-heavy music, try moving the high-pass setting up in small steps, such as 90 or 100 Hz. If the front of the car becomes too thin or the subwoofer becomes too easy to locate, move the setting down a little and listen again.

Do not choose a setting just because a speaker is labeled with a large power number. Fitment, amplifier power and the way a specific vehicle door behaves matter far more. A cleanly fitted speaker with sensible filtering will usually sound better than a more ambitious setting that forces it to chase bass it cannot reproduce comfortably.

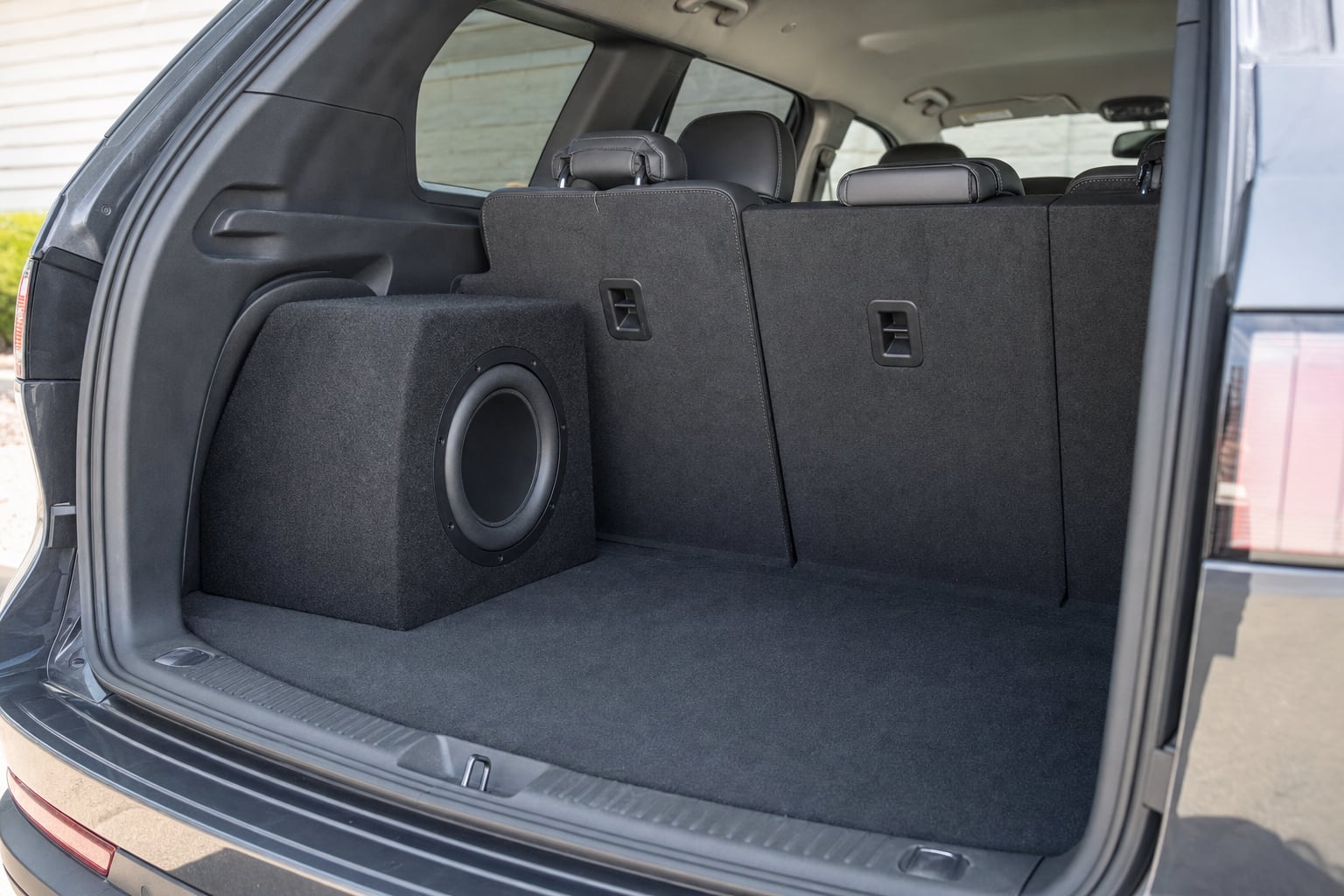

4. Set the low-pass filter for the subwoofer

The low-pass filter is where you decide how high the subwoofer is allowed to play. Start near the same point as the front high-pass filter, again often around 80 Hz. Then listen for whether bass fills in naturally below the front speakers.

If the low-pass setting is too high, the subwoofer may play too much upper bass. Voices can sound thicker than they should, and it may feel as though the bass is coming from the trunk or cargo area instead of joining the music up front. If it is too low, the system can develop a gap, with bass notes losing body before the front speakers take over.

Enclosure design also changes the answer. A compact powered subwoofer, a sealed enclosure and a larger ported enclosure do not behave exactly alike. That is why the crossover is a starting point, not a promise. Make one change at a time, use the same few songs and keep notes on what you hear.

5. Choose the slope after the frequency is close

The slope tells the filter how quickly it reduces sound beyond the crossover point. A 12 dB-per-octave slope is gentler. A 24 dB-per-octave slope is steeper. Neither is automatically better. The slope changes how much overlap remains between the speakers, so it affects the blend as much as the number on the frequency dial.

Start with the default slope your receiver or amplifier provides. If the front speakers still sound busy or stressed when bass hits, a steeper high-pass slope may help them stay composed. If the transition begins to sound too abrupt, the gentler option may blend more naturally. On the subwoofer, a steeper low-pass slope can help keep upper-bass voices and instruments out of the cargo area.

Keep the adjustment simple. Set the crossover point first. Then compare one slope change with the same music and volume. Changing frequency, slope, equalization and gain all at once is how a useful tuning session turns into guesswork.

6. Do not use gain as a volume knob

Gain and crossover settings work together, but they solve different problems. The crossover decides which frequencies a speaker is asked to handle. Gain matches the amplifier input to the signal coming from the receiver. It is not a second volume control, and turning it up to make the bass louder can introduce distortion before the receiver volume looks high.

After the filters are close, set a comfortable receiver volume and adjust the system so it sounds balanced at the level you actually use. Bass should add weight without making the front speakers disappear. If the whole system gets sharp, buzzy or compressed when pushed, back down and inspect the setup rather than assuming more gain will solve it.

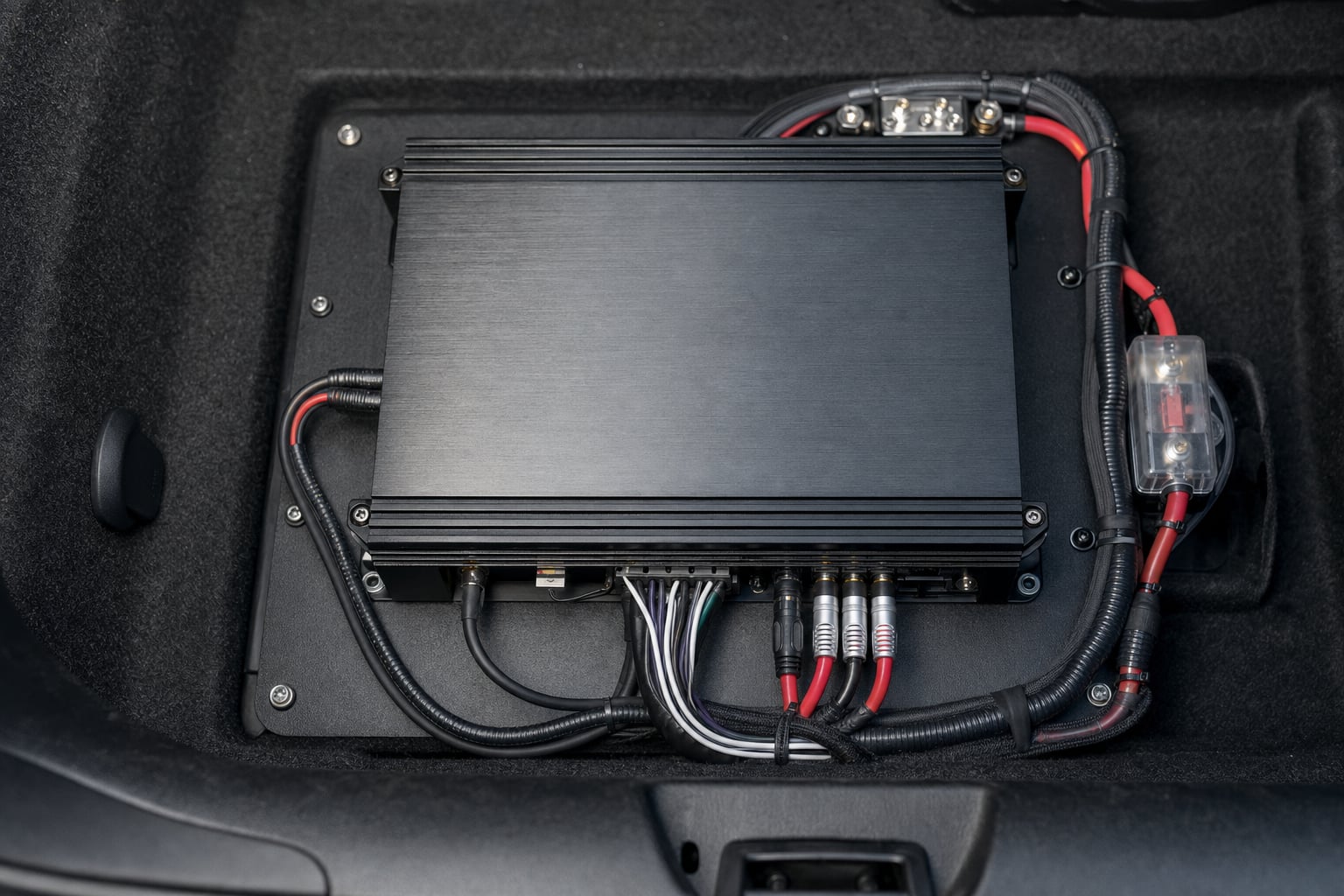

Secure wiring, clean signal routing and solid equipment mounting matter here as much as the knobs do. A thoughtfully installed audio and CarPlay system gives you a stable foundation for tuning. It also makes future upgrades easier because the system was planned as a whole.

7. Listen for these signs while you adjust

• Front speakers distort on heavy bass: raise the high-pass point slightly or choose a steeper high-pass slope.
• Bass seems to come only from the trunk: lower the subwoofer low-pass point a little, then check the level and phase.
• The system sounds thin around bass guitar or kick drum: bring the high-pass and low-pass points closer together before adding more bass boost.
• Voices sound thick or cloudy: the subwoofer may be playing too high, or the front speakers may need a cleaner handoff.
• Everything gets loud but not clear: revisit gain, speaker capability and the source signal instead of adding more equalization.

Make these changes at a safe, parked listening volume. For the final test, drive the same familiar route. Road noise and cabin reflections can change what you hear compared with a quiet driveway, and a setting that sounds impressive while parked is not always the one that feels best on a daily commute.

When a professional tune makes sense

Basic crossover adjustments are approachable when the controls are clear and the system is simple. The decision gets harder with factory amplified systems, signal processors, multiple amplifiers, custom speaker locations or equipment that needs vehicle-specific integration. In those cases, a setting that looks right on paper can still miss because the signal path and cabin are more complicated.
